Data-Backed Testing

B9 3.0T Intercooler Test: Stock FMIC vs. ARM FMIC IAT Data

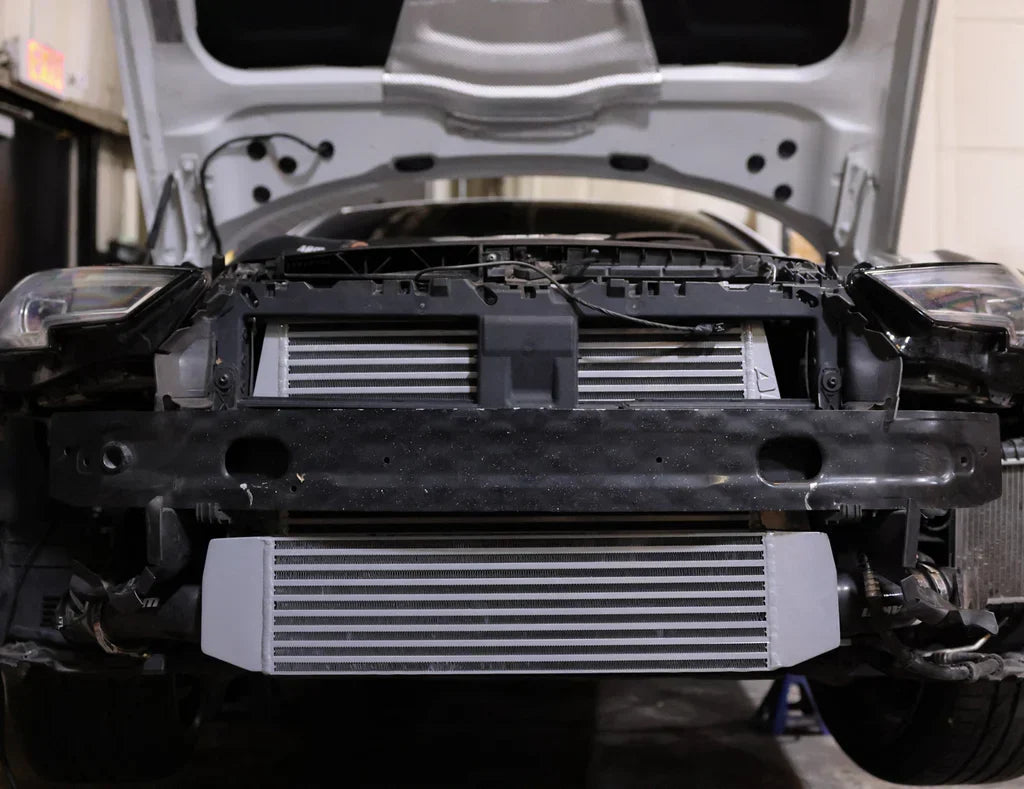

Heat soak is one of those things enthusiasts talk about constantly, because it matters when it comes to the performance of your EA839.  We datalogged our  B9 S4 3.0T running its factory front mount intercooler, then logged the same pull again with the ARM B9 FMIC installed. Both tests were run at the same 77°F ambient air temperature, in the same gear, under comparable load.

Here's exactly what the data showed, and what it means for real-world power delivery.

Test Setup

• Platform: 2019 B9 Audi S4 3.0T
• Ambient air temperature: 77°F (both tests)
• Gear: 3rd gear pull
• Configuration 1: FBO on E40 Tune with OEM front mount intercooler
• Configuration 2: FBO on E40 Tune with ARM B9 FMIC
• Logged channels: Engine Speed (RPM), Load (%), Boost Pressure (psi), Intake Air Temp (°F)

The Results

B9 3.0T OEM FMIC — 3rd Gear

ARM B9 3.0T FMIC — 3rd Gear

Does It Hold Up Across Multiple Gears?

A single gear pull is a good starting point, but sustained load across a full run is the real test. We logged an additional ARM FMIC pull spanning 3rd through 5th gear, with two full shift events captured in the same continuous log, to see whether IAT would start climbing once the intercooler had to handle repeated boost cycles back to back.

IAT opened the run at 83.3°F and closed it at 83.3°F, a net change of 0°F across three gears and roughly 17 seconds of sustained boost. Even through the mid-pull dips at each shift, the ARM FMIC gave the intake charge enough recovery to return to its starting temperature rather than trending upward run over run.

ARM B9 3.0T FMIC — 3rd-5th Gear

Why It Matters

Intake air temp isn't just a number on a log, it directly affects how much timing the ECU pulls to protect against knock and how dense the air charge is going into the cylinder. On the stock FMIC, IAT nearly doubled its rise above ambient by the end of the pull, climbing to 45% over outside air. That's the kind of heat buildup that leads to timing correction, reduced density, and power that fades the longer or harder you push.

With the ARM B9 FMIC, IAT stayed close to ambient the entire pull, never climbing past 6.4% over outside air. Cooler, denser air means more consistent ignition timing and more repeatable power, not just on a single dyno pull, but pull after pull, lap after lap.

FAQ

How much cooler is the ARM B9 FMIC than the stock intercooler?

In matched 77°F ambient testing, the ARM B9 FMIC finished a 3rd gear pull at 81.95°F versus 111.65°F on the stock intercooler, a 29.7°F difference (26.6% lower).

Does a bigger intercooler actually reduce intake air temps?

Yes, when core volume and airflow are properly matched to the platform. In this test, the ARM B9 FMIC kept IAT within 6.4% of ambient air temperature, while the stock unit climbed to 45% over ambient under the same load.

Why does intake air temp matter for performance?

Higher IAT increases the risk of knock, which causes the ECU to pull ignition timing and reduce power. Higher IAT also means less dense air entering the cylinder. Keeping IAT close to ambient supports more consistent timing and more repeatable power delivery.

Does the ARM B9 FMIC hold up across multiple gears, not just one pull?

Yes. In a logged run spanning 3rd through 5th gear with two shift events, IAT opened and closed the pull at the same 83.3°F, a net change of 0°F across roughly 17 seconds of sustained boost.
