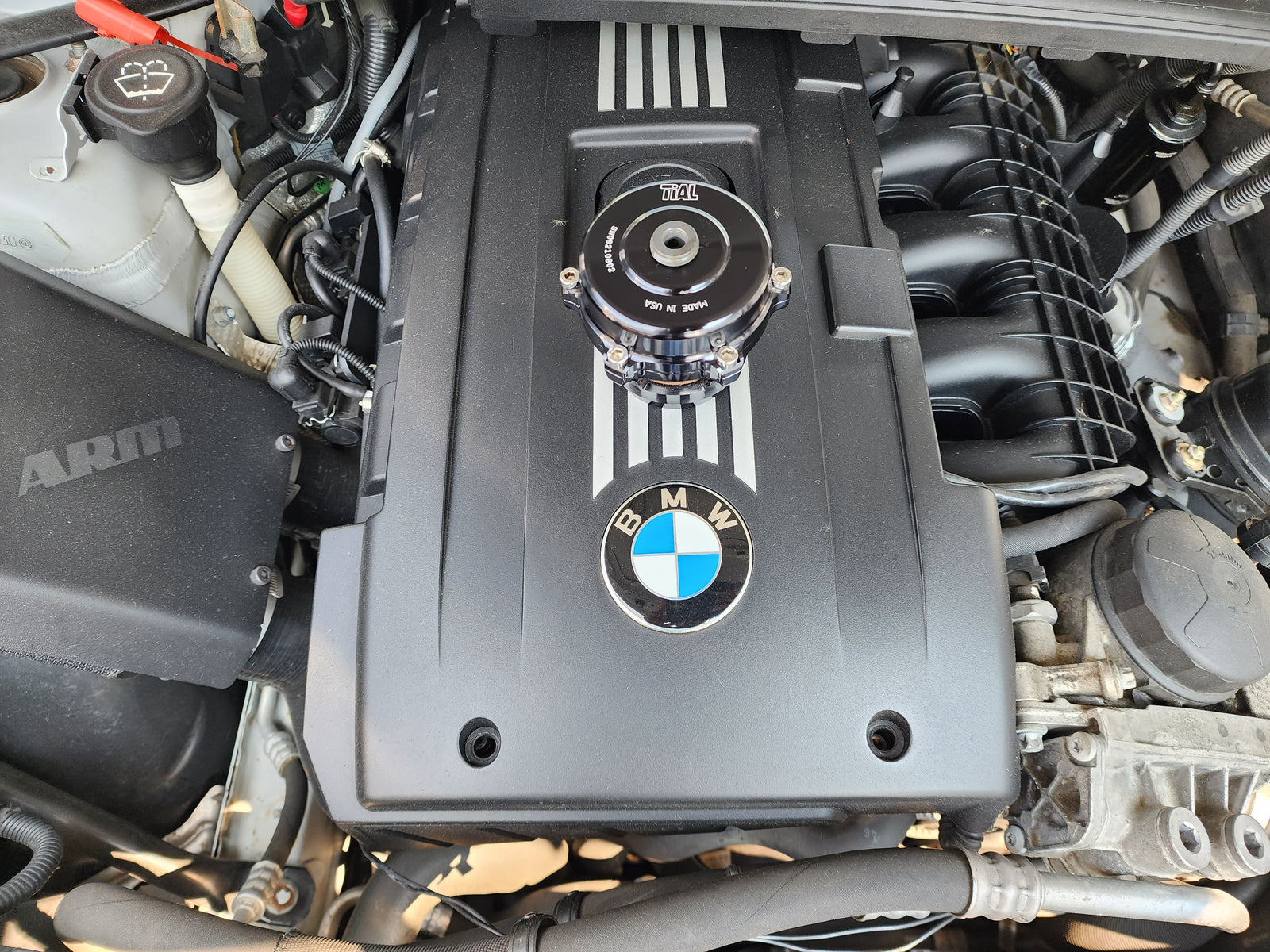

Understanding the TiAL Q BOV in the N54 Engine: Debunking the Myth of Spring Pressure and Boost Levels

The TiAL Q is one of the preferred BOVs for the N54 engine, it is reliable, strong, and looks good.  We often receive emails asking about the 10psi spring that comes pre-installed into the TiAL Q BOV, wondering if it is sufficient for holding boost on an N54 making 20+ psi.  However, there is a common misconception regarding the relationship between spring pressure in BOVs and the amount of boost a vehicle is producing. In this article, we will specifically explore the N54 engine using the TiAL Q BOV, shedding light on the true factors influencing TiAL Q BOV operation and clarifying the role of spring pressure versus engine vacuum.

1. Turbocharged Engines and Blow-Off Valves

Before delving into the N54 engine, let's first understand the basic principles behind turbocharged engines and the purpose of BOVs. A turbocharger increases engine power by compressing air, which is then forced into the cylinders. During moments of throttle lift-off, such as when shifting gears or releasing the accelerator pedal, the throttle plate closes, causing pressurized air to be trapped between the closed throttle and the turbocharger.

2. The Role of Blow-Off Valves

To prevent damage to the turbocharger and maintain performance, a BOV is employed, in our case the TiAL Q BOV. The BOV acts as a pressure relief valve, allowing the excess pressurized air to escape rather than being forced back into the turbocharger. This prevents surge, a condition where the turbocharger slows down abruptly due to the pressurized air colliding with the compressor wheel, causing stress and potential damage.

3. Debunking the Spring Pressure Myth

One prevailing misconception is that the spring pressure in a TiAL Q BOV directly correlates with the amount of boost being generated. However, in the case of the N54 engine, this is not accurate. The N54 engine utilizes a speed-density system, which measures airflow based on the intake manifold's vacuum. Therefore, TiAL Q spring pressure does not directly relate to boost levels, but rather to the vacuum conditions of the engine.  This is why ensuring the vacuum line from your intake manifold to your BOV is in good condition.  The ARM BOV Line Upgrade does this precisely.

4. Understanding Engine Vacuum and BOV Operation

Engine vacuum refers to the level of suction created within the intake manifold. During idle or light throttle conditions, when the throttle plate is mostly closed, the engine generates a high vacuum. In contrast, under wide-open throttle conditions, the throttle plate is fully open, and the engine vacuum decreases significantly.

In a speed-density system like the N54 engine, the amount of boost produced is determined by the engine's speed and the volume of air entering the intake manifold, rather than the spring pressure in the TiAL Q BOV. The TiAL Q responds to changes in vacuum by opening or closing to maintain the required pressure balance and prevent surge.

5. Spring Pressure's Role in the TiAL Q BOV

While spring pressure doesn't directly correlate to boost levels, it does influence the BOV's response time and behavior. A stiffer spring exerts more force, requiring a higher vacuum level to overcome the spring tension and open the BOV. This results in a slightly delayed response and potentially a crisper sound when the BOV vents excess pressure. Conversely, a lighter spring allows the BOV to open with less vacuum, providing a quicker response and potentially a softer sound.

CONCLUSION

Understanding the intricacies of BOV operation in turbocharged engines, particularly the N54 engine, is crucial to dispel misconceptions surrounding spring pressure and boost levels. In the N54 engine, the spring pressure in a TiAL Q BOV is not directly related to the amount of boost being produced but instead affects the BOV's response time and behavior. The true determining factor for boost levels in the N54 engine is the engine's vacuum conditions. At ARM we sell only TiAL Q BOVs with the 10psi spring pre-installed, the ideal spring pressure for your N54, regardless of if you are running stock boost or 25psi.
